Computational design

I can't draw CAD from scratch, but I can usually find a downloaded mesh close to what I need.

Agents rebuild that mesh into a real editable solid, and I make my changes from there.

The problem

A mesh is a shell, not a shape

A downloaded mesh looks like the part you want and behaves nothing like it. It is a skin of triangles with no idea that it has a hole in it, or a flat face, or a fillet. There is nothing in it to grab and resize, because there is no feature there to grab. Turning one into a real solid by hand is exactly the skill I don't have.

So the rebuild is the product: agents work the mesh back into a solid with real faces and edges, and from there it behaves like something drawn on purpose: resize it, drill it, add a bracket, and export STEP for a vendor or a print-ready 3MF for the printer downstairs.

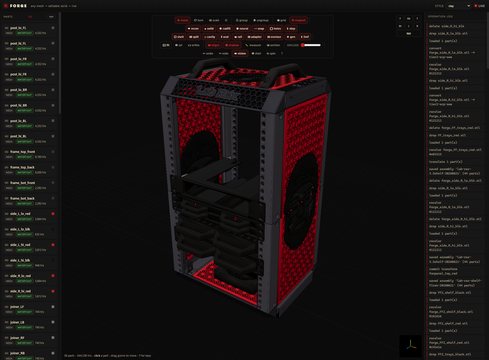

A 58-part rack assembly rebuilt from downloaded meshes, with the log of every operation on the right.

The rebuild

Cheapest method that works, then fall back

There is no single conversion that handles every mesh. The fast methods work beautifully on parts that were mechanical to begin with and produce garbage on anything organic. The thorough methods handle almost anything and are slow enough that you would never run one speculatively.

So the pipeline tries them in order, cheapest first, and falls back when a tier fails its check rather than when it errors. Most parts never reach the expensive tier. The ones that do are the ones that needed it, and I find out which is which from the operation log rather than by guessing.

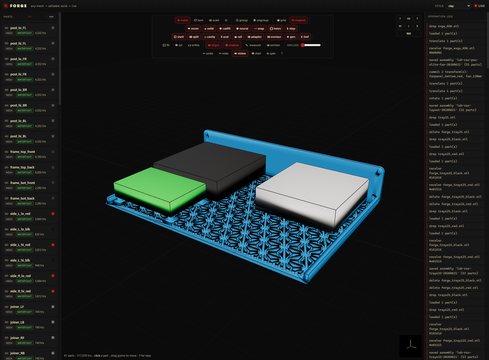

A device tray mid-session, with three housings seated on the patterned base.

The check

Measured against the mesh it came from

A rebuilt solid that looks right and is a millimetre off is worse than one that obviously failed, because you find out at the printer or, later, at the vendor.

Every rebuild is compared back against the original mesh before it is accepted, and the comparison is what promotes or rejects the tier. The bench scores two different things: how close the solid is to the mesh it was rebuilt from, and, for the parts where a real STEP solid exists to check against, how close it is to that. On a four-part test bench, the strongest rebuild matches its source mesh to 99.6%. Running a published neural rebuild, CAD-Recode, over the same four parts topped out at 84.8%, and it scored 30.2% on the part my pipeline rebuilds to 99.6%.

Rebuilt solid against the mesh it came from

0.996

IoU on the vent panel through the extrusion tier, its 16 mounting holes recovered as editable features

bench-scored
A 40 mm fan plate runs the ladder Cheapest tier first, falls back on a failed check, not a failed run
accepted, sew tier IoU 1.0
Extrusion fit sweeps one profile, keeps holes as real features check failed, 0.2 s
Watertight sew sews the shell into a solid, universal but not feature-editable IoU 1.000, 3.4 s
Feature-history fit searches for a full sequence of modeling steps IoU 0.354, 221 s
Neural rebuild a model sketches and extrudes an approximation IoU 0.147, 10 s

The ladder stopped at the sew. The two tiers below ran for the bench table only, and both scored worse after costing more. The check is an IoU floor, added after a tier once reported success at 0.134.

IoU 1.0 at the second tier
One part's run out of the bench table. Times and scores are the bench's own rows, not estimates.
One bench row: run a tier, then measure it (PYTHON, 41 lines)
bench/bench.py. This is the harness the tier ladder is scored by, so every number on this page comes out of a row it printed.
def bench_recon_row(fname, tier, gt_mesh):
    p = _make_part(fname)
    base_mesh = p.mesh.copy()
    t = time.time()
    ok, err, out = True, "", None
    try:
        if tier == "recon":
            r = recon_fn(p)
            ok = bool(r.ok)
            out = p if r.ok else None
            if not r.ok:
                err = str(r.reason)[:48]
        elif tier == "tier2":
            forge.convert(p)
            out, ok = p, p.has_solid
        elif tier == "cadfit":
            from forge.recon_cadfit import reconstruct_cadfit
            out = reconstruct_cadfit(p, max_iterations=1)
            ok = out.has_solid
        elif tier == "neural":
            from forge.recon_neural import reconstruct_neural
            out = reconstruct_neural(p, device="cuda")
            ok = out.has_solid
        else:
            raise ValueError(f"unknown tier {tier!r}")
    except Exception as e:
        ok = False
        err = f"{type(e).__name__}: {str(e)[:48]}"
    dt = time.time() - t

    faces = holes_n = vol = iou_self = iou_gt = "-"   # table placeholders
    if out is not None and out.has_solid:
        faces = count_faces(out.solid)
        holes_n = len(forge_solid_holes(out))
        vol = int(round(forge.solid_volume(out.solid)))
        om = out.display_mesh()
        iou_self = voxel_iou(om, base_mesh)     # vs the mesh it was rebuilt from
        if gt_mesh is not None:
            iou_gt = voxel_iou(om, gt_mesh)     # vs the STEP solid, where one exists
    md(f"| {tier} | {('OK' if ok else 'FAIL')} | {dt:.1f} | {faces} | "
       f"{holes_n} | {vol} | {iou_self} | {iou_gt} | {err} |")

Where it stands

Runs live in the browser. On a four-part test bench, the strongest rebuild matches its source mesh to 99.6%. Running a published neural rebuild, CAD-Recode, over the same four parts topped out at 84.8%.

mesh in, STEP/3MF out · agents drive the rebuild · live viewer
